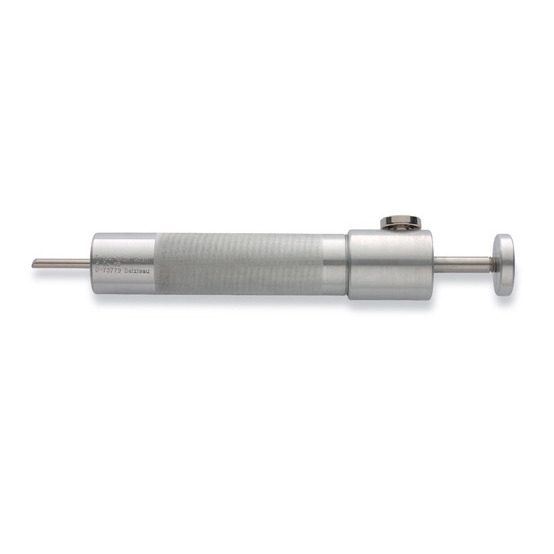

Stunning device for small animals up to 16 kg. No ammunition needed.
The stunning device for small animals (KTBG) is solely designed for stunning for slaughter and emergency killing of small rodents up to 5 kg and fattened poultry such as ducks, geese and turkeys up to a weight of approx. 16 kg.
View the operating instructions in PDF format: Click Here >
Dimensions: Ø34 x 40 x 230 mm;
Weight: 0.4 kg;
Bolt diameter 4.7 mm
Exit length 25 mm
Stunning energy: 6.7 joule
A-weighted emission sound pressure level at a work station according to EN ISO 11201:2010 on damped surface:
LpA, 1m, max: 75 dB, uncertainty KpA: 3 dB.
How it works:
> Pulling the bolt [2] at the disc [1] up to
the latching point tensions the spring.
> When the trigger button [3] is pressed the
bolt is accelerated by the spring force,
it passes through the muzzle out of the
device and penetrates the skull of the
animal for slaughter.
> The shot stuns the animal
