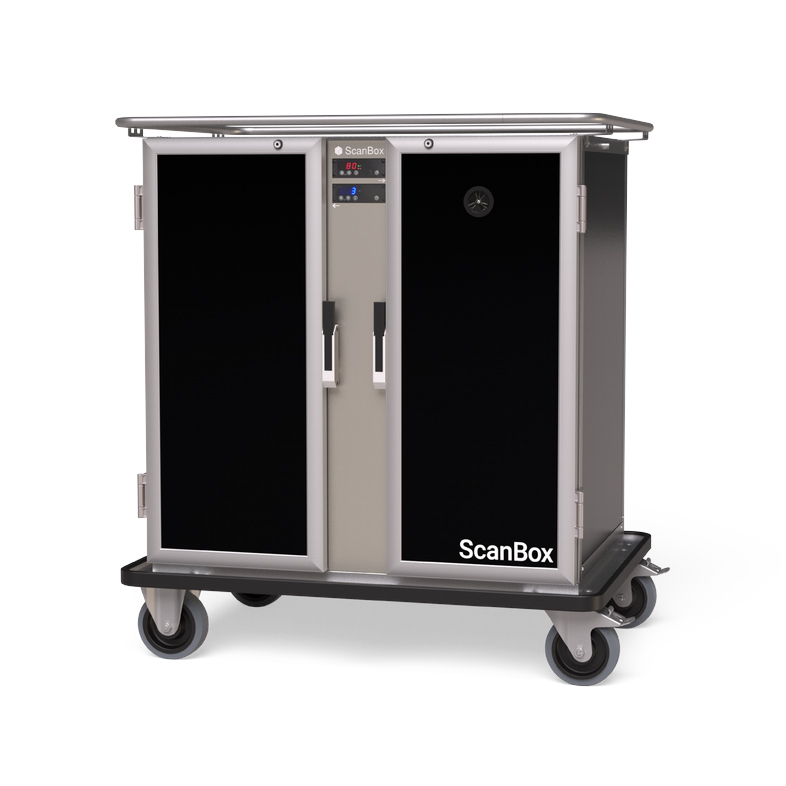

Ergo Line Duo
Compressor cooling + Fan heating
Product description
Ergo Line Duo is made to hold and transport hot and cold food in two separate compartments. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.
The left compartment of the box is equipped with compressor cooling for efficient cooling down to 3°C. The right compartment of the box has fan heating that provides fast and even heat distribution and can reach operating temperatures of up to 90°C. Adjustable temperature and ventilation ensure excellent food quality control. ScanBox Ergo Line Duo is available in several sizes with a capacity of up to 28 containers in the GN 1/1 standard.
Equipped with stainless steel chassis, One grip handle, solid door, 160 mm lockable wheels, removable U-guide rails with 80 mm spacing, black RAL 9005 as standard. The equipment can be easily adapted as required through available extra options.
Electrical system
100-125 V
Model and size
Cold; 10 GN | 80-100 portions | Max 90 kg food
Heat; 10 GN | 80-100 portions | Max 90 kg food
Technical specification
Rack pitch: 80 mm
No of trays: 20
Rack load max: 9 kg
Inside dimensions W:331mm x H:886mm x D:601mm
Outer dimensions W:1100mm x H:1225mm x D:870mm
Weight: 120 kg
Voltage: 100-125 V
Power rating: 6.92 A
Effect - cold: 130 W
Effect - Hot: 700 W
Temperature range: 3 - 90 °C
Cooling system: Compressor back mounted (std)
Heating system: Element with fan & ventilation (std)
Volume: 289 l
