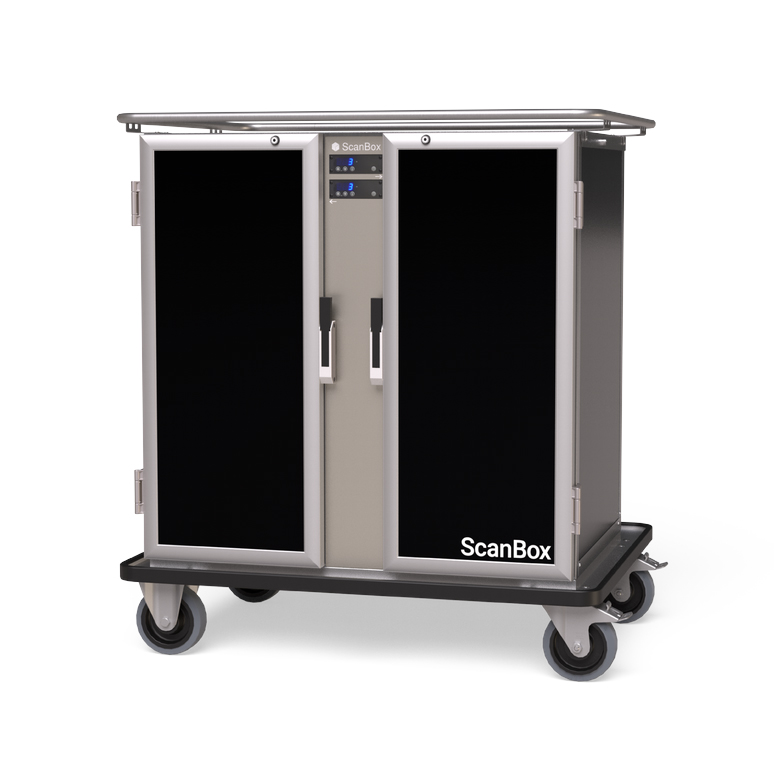

Ergo Line Duo
Compressor cooling + Compressor cooling
Product description
Ergo Line Duo is made to hold and transport cold food in two separate compartments. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.
The right and left compartments of the box form two individual temperature zones that are equipped with compressor cooling for efficient temperature distribution down to 3°C in 30 minutes. Digitally adjustable temperatures ensure excellent food quality control. ScanBox Ergo Line Duo is available in several sizes with a capacity of up to 28 containers in the GN 1/1 standard.
Equipped with ScanBox Digital Control, One grip handle, solid doors, 160 mm lockable wheels, removable U-guide rails with 80 mm spacing, black RAL 9005, 220-230V single phase as standard. The equipment can be easily adapted as required through available extra options.
Electrical system
100-125 V
Model and size
Cold; 10 GN | 80-100 portions | Max 90 kg food
Cold; 10 GN | 80-100 portions | Max 90 kg food
Technical specification
Rack pitch: 80 mm
No of trays: 20
Rack load max: 9 kg
Inside dimensions W:331mm x H:886mm x D:601mm
Outer dimensions W:1100mm x H:1225mm x D:870mm
Weight: 125 kg
Voltage: 100-125 V
Power rating: 2.17 A
Effect - cold: 260 W
Cooling system: Compressor back mounted (std)
Volume: 289 l
